VND5004DSP30

high-side driver

VND5004DSP30 Features

* 0XOWL3RZHU6

* $3

* &)7

* Reverse battery protection with self switch on of the Power MOSFET

* Electrostatic discharge protection application

* All types of resistive, inductive and capacitive loads

* Suitable for power management applications Max

VND5004DSP30 General Description

The device is a double channel high-side driver manufactured using STMicroelectronics proprietary VIPower® M0-5 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp and load dump protection circuit protect the device agai.

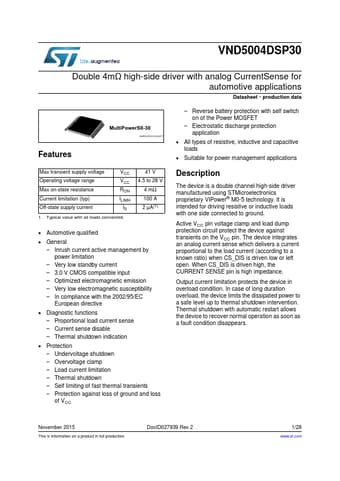

VND5004DSP30 Datasheet (324.80 KB)

Preview of VND5004DSP30 PDF

Datasheet Details

Part number:

VND5004DSP30

Manufacturer:

STMicroelectronics ↗

File Size:

324.80 KB

Description:

High-side driver.
