VND5004CSP30

high-side driver

VND5004CSP30 Features

* Max transient supply voltage VCC 41 V Operating voltage range VCC 4.5 to 27 V Max On-State resistance (per ch.) RON 4 mΩ Current limitation (typ) Off state supply current ILIMH IS 100 A 2 µA(1) 1. Typical value with all loads connected

* Automotive qualified

* General

VND5004CSP30 General Description

The device is a double channel high-side driver manufactured using STMicroelectronics proprietary VIPower® M0-5 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp and load dump protection circuit protect the devices aga.

VND5004CSP30 Datasheet (325.87 KB)

Preview of VND5004CSP30 PDF

Datasheet Details

Part number:

VND5004CSP30

Manufacturer:

STMicroelectronics ↗

File Size:

325.87 KB

Description:

High-side driver.

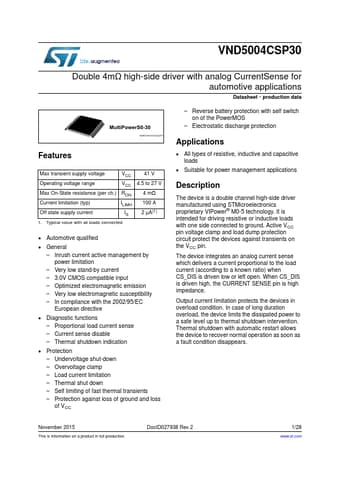

VND5004CSP30 Double 4mΩ high-side driver with analog CurrentSense for automotive applications Datasheet - production data 0XOWL3RZHU6
