VND5004ASP30-E, VND5004A-E Datasheet - STMicroelectronics

VND5004ASP30-E high-side driver

The VND5004A-E and VND5004ASP30-E are devices made using STMicroelectronics VIPower technology. They are intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp and load dump protection circuit protect the devices against transients on the Vc.

VND5004ASP30-E Features

* Applications

* All types of resistive, inductive and capacitive loads Max transient supply voltage VCC 41V

* Suitable for power management applications Operating voltage range VCC Max on-state resistance (per ch.) RON Current limitation (typ) ILIMH Off state supply current IS 1

VND5004A-E-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: VND5004ASP30-E, VND5004A-E. Please refer to the document for exact specifications by model.

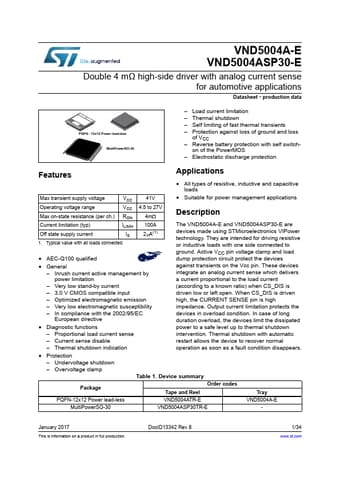

VND5004ASP30-E Datasheet Preview Page 2 VND5004ASP30-E Datasheet Preview Page 3

Datasheet Details

Part number:

VND5004ASP30-E, VND5004A-E

Manufacturer:

STMicroelectronics ↗

File Size:

853.20 KB

Description:

High-side driver.

Note:

This datasheet PDF includes multiple part numbers: VND5004ASP30-E, VND5004A-E.
Please refer to the document for exact specifications by model.
