VND9016AJ

Double channel high-side driver

VND9016AJ Features

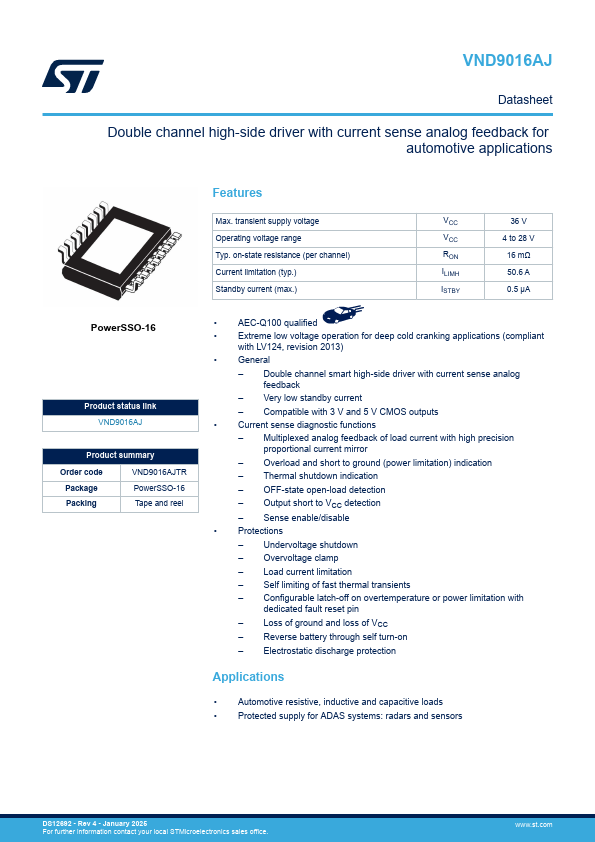

* Max. transient supply voltage Operating voltage range Typ. on-state resistance (per channel) Current limitation (typ.) Standby current (max.) VCC VCC RON ILIMH ISTBY 36 V 4 to 28 V 16 mΩ 50.6 A 0.5 µA PowerSSO-16 Product status link VND9016AJ Product summary Order code VND9016AJTR Package P

VND9016AJ General Description

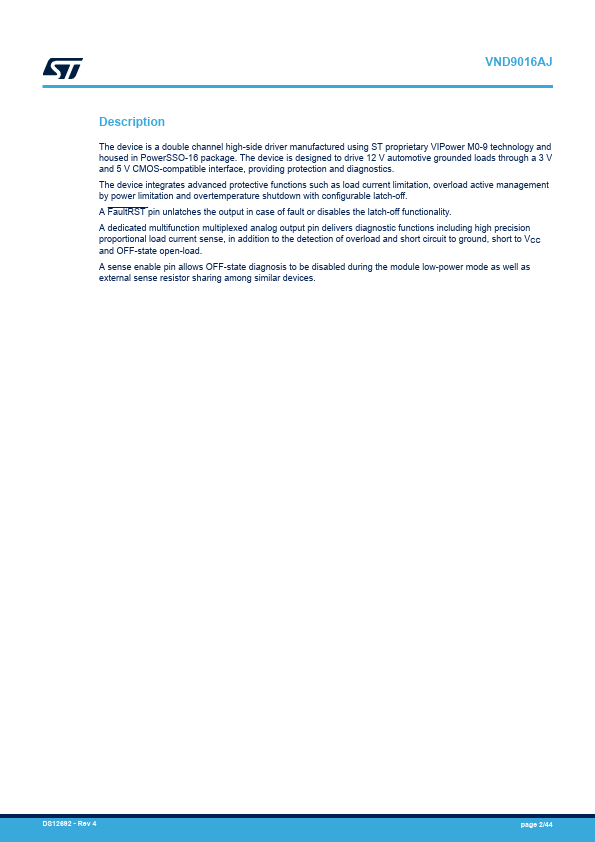

The device is a double channel high-side driver manufactured using ST proprietary VIPower M0-9 technology and housed in PowerSSO-16 package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics. The devic.

VND9016AJ Datasheet (1.39 MB)

Preview of VND9016AJ PDF

Datasheet Details

Part number:

VND9016AJ

Manufacturer:

STMicroelectronics ↗

File Size:

1.39 MB

Description:

Double channel high-side driver.

📁 Related Datasheet

VND9012AJ Double channel high-side driver (STMicroelectronics)

VND9008AJ Double channel high-side driver (STMicroelectronics)

VND9025AJ Double channel high-side driver (STMicroelectronics)

VND920 Double channel high-side solid-state relay (STMicroelectronics)

VND920-E DOUBLE CHANNEL HIGH SIDE SOLID STATE RELAY (ST Microelectronics)

VND920P DOUBLE CHANNEL HIGH SIDE SOLID STATE RELAY (STMicroelectronics)

VND920P-E Double channel high-side driver (STMicroelectronics)

VND05B DOUBLE CHANNEL HIGH SIDE SMART POWER SOLID STATE RELAY (STMicroelectronics)

VND05BSP ISO HIGH SIDE SMART POWER SOLID STATE RELAY (STMicroelectronics)

VND10B DOUBLE CHANNEL HIGH SIDE SMART POWER SOLID STATE RELAY (STMicroelectronics)

TAGS

VND9016AJ Double channel high-side driver STMicroelectronics

Image Gallery

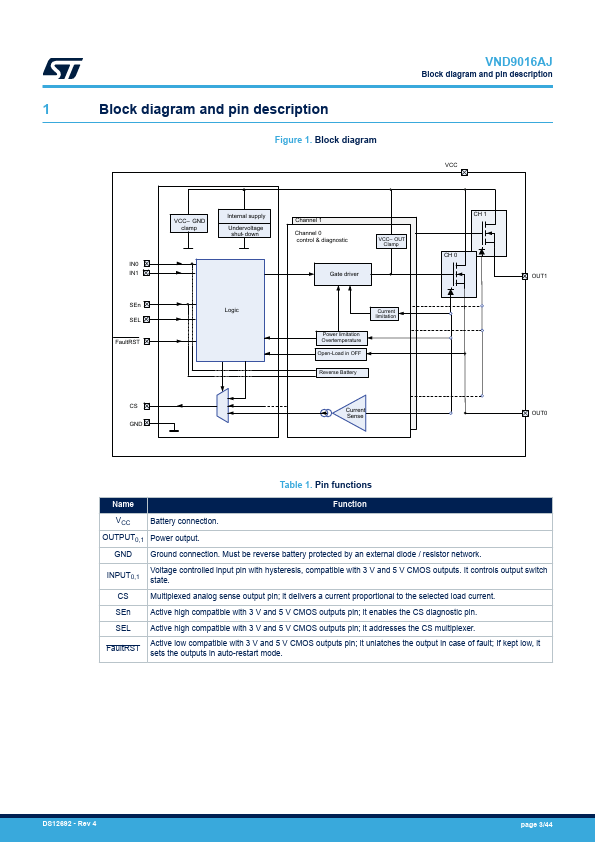

VND9016AJ Datasheet Preview Page 2 VND9016AJ Datasheet Preview Page 3
