VNH2SP30-E Datasheet, Driver, STMicroelectronics

VNH2SP30-E Features

  • Driver Type VNH2SP30-E RDS(on) 19 mΩ max (per leg) Iout Vccmax 30 A 41 V
  • AEC-Q100 qualified
  • 5 V logic level compatible inputs
  • Undervoltage and overvoltage shut

PDF File Details

Part number:

VNH2SP30-E

Manufacturer:

STMicroelectronics ↗

File Size:

506.61kb

Download:

📄 Datasheet

Description:

Automotive fully integrated h-bridge motor driver. The VNH2SP30-E is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual mon

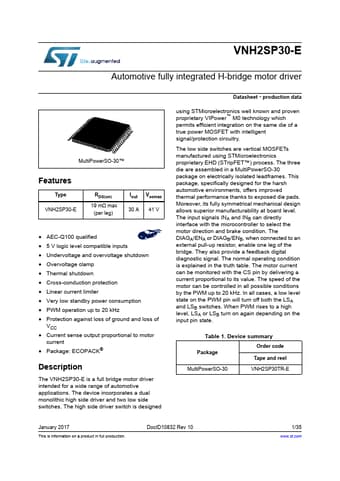

Datasheet Preview: VNH2SP30-E 📥 Download PDF (506.61kb)
Page 2 of VNH2SP30-E Page 3 of VNH2SP30-E

VNH2SP30-E Application

  • Applications The device incorporates a dual monolithic high side driver and two low side switches. The high side driver switch is designed Datashe
