VNH3SP30-E Datasheet, Driver, STMicroelectronics

VNH3SP30-E Features

• Driver Type VNH3SP30-E RDS(on) 45mmax per leg) Iout Vccmax 30A 40V
• Output current: 30A
• 5V logic level compatible inputs
• Undervoltage and overvoltage shutdo

PDF File Details

Part number:

VNH3SP30-E

Manufacturer:

STMicroelectronics ↗

File Size:

686.19kb

Download:

📄 Datasheet

Description:

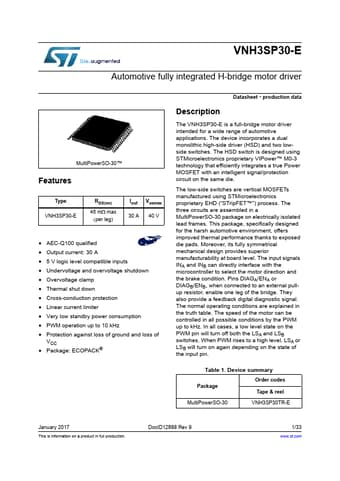

Automotive fully integrated h-bridge motor driver. The VNH3SP30-E is a full-bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual mon

VNH3SP30-E Application

• Applications The device incorporates a dual monolithic high-side driver (HSD) and two lowside switches. The HSD switch is designed using STMicroele

TAGS

VNH3SP30-E

STMicroelectronics
