VNP14N04FI OMNIFET: FULLY AUTOPROTECTED POWER MOSFET

The VNB14N04, VNK14N04FM, VNP14N04FI and VNV14N04 are monolithic devices made using STMicroelectronics VIPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect BLOCK DIA.

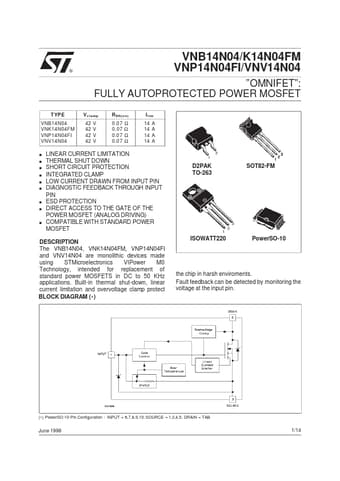

® VNB14N04/K14N04FM VNP14N04FI/VNV14N04 ”OMNIFET”: FULLY AUTOPROTECTED POWER MOSFET T YPE VNB14N04 VNK14N04FM VNP14N04FI VNV14N04 s s s s s s V c lamp 42 42 42 42 V V V V R DS(on) 0.07 0.07 0.07 0.07 Ω Ω Ω Ω I l im 14 14 14 14 A A A A 3 1 s s s LINEAR CURRENT LIMITATION THERMAL SHUT DOWN SHORT CIRCUIT PROTECTION INTEGRATED CLAMP LOW CURRENT DRAWN FROM INPUT PIN DIAGNOSTIC FEEDBACK THROUGH INPUT PIN ESD PROTECTION DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) COMPATIBLE W.

VNP14N04FI Features

* During normal operation, the Input pin is electrically connected to the gate of the internal power MOSFET. The device then behaves like a standard power MOSFET and can be used as a switch from DC to 50 KHz. The only difference from the user’s standpoint is that a small DC current (Iiss) flows into t
