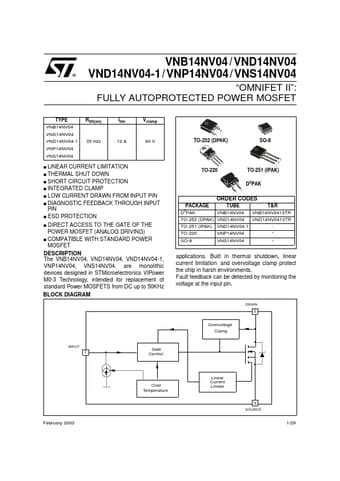

VNP14NV04 FULLY AUTOPROTECTED POWER MOSFET

The VNB14NV04, VND14NV04, VND14NV04-1, VNP14NV04, VNS14NV04, are monolithic devices designed in STMicroelectronics VIPower M0-3 Technology, intended for replacement of standard Power MOSFETS from DC up to 50KHz BLOCK DIAGRAM 3 1 TO-252 (DPAK) SO-8 3 2 1 TO-220 3 2 1 TO-251 (IPAK) D2PAK 3 1 ORD.

VNB14NV04 / VND14NV04 ® / VND14NV04-1 / VNP14NV04 / VNS14NV04 “OMNIFET II”: FULLY AUTOPROTECTED POWER MOSFET TYPE VNB14NV04 VND14NV04 VND14NV04-1 VNP14NV04 VNS14NV04 RDS(on) 35 mΩ Ilim 12 A Vclamp 40 V s LINEAR CURRENT LIMITATION s THERMAL SHUT DOWN s SHORT CIRCUIT PROTECTION s INTEGRATED CLAMP s LOW CURRENT DRAWN FROM INPUT PIN s DIAGNOSTIC FEEDBACK THROUGH INPUT PIN s ESD PROTECTION s DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) s COMPATIBLE WITH STANDARD POWER MOSFET DE.
