VNP20N07

FULLY AUTOPROTECTED POWER MOSFET

VNP20N07 Features

* During normal operation, the Input pin is electrically connected to the gate of the internal power MOSFET. The device then behaves like a standard power MOSFET and can be used as a switch from DC to 50 KHz. The only difference from the user’s standpoint is that a small DC current (Iiss) flows into t

VNP20N07 General Description

The VNP20N07 is a monolithic device made using STMicroelectronics VIPower Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limi- BLOCK DIAGRAM 3 2 1 TO-220 tation and overvoltage clamp protect the chip in harsh .

VNP20N07 Datasheet (359.84 KB)

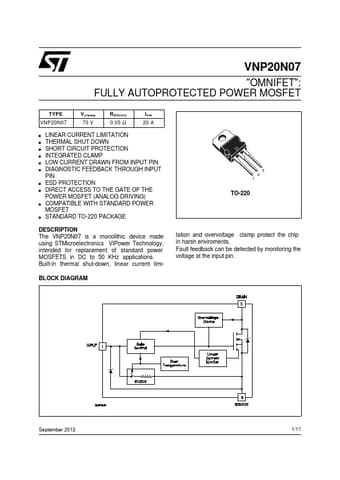

Preview of VNP20N07 PDF

Datasheet Details

Part number:

VNP20N07

Manufacturer:

STMicroelectronics ↗

File Size:

359.84 KB

Description:

Fully autoprotected power mosfet.
VNP20N07 "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE VNP20N07 Vclamp 70 V RDS(on) 0.05 Ω Ilim 20 A s LINEAR CURRENT LIMITATION s THERMAL SHU.
