VNP28N04, OMNIFET: FULLY AUTOPROTECTED POWER MOSFET

VNP28N04 ”OMNIFET”: FULLY AUTOPROTECTED POWER MOSFET TYPE VNP28N04 s s s s s s V clamp 42 V R DS(on) 0.035 Ω I l im 28 A s s s s LINEAR CURRENT.
The VNP28N04 is a monolithic device made using SGS-THOMSON Vertical Intelligent Power M0 Technology, intended for replacement of standard power MOSFET.

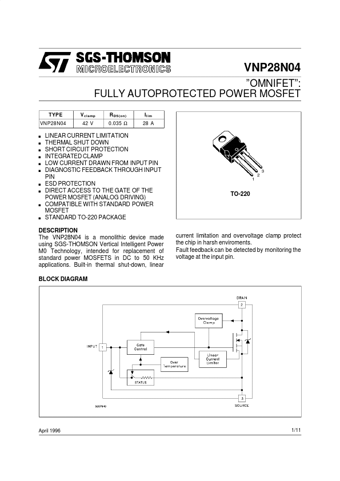

datasheet Preview Page 1 from Datasheet4u.com

VNP28N04_STMicroelectronics.pdf

VNP28N04 Datasheet Preview — Preview of VNP28N04 PDF

Datasheet Details

Part number:

VNP28N04

Manufacturer:

STMicroelectronics ↗

File Size:

133.52 KB

Description:

OMNIFET: FULLY AUTOPROTECTED POWER MOSFET

Features

* During normal operation, the Input pin is electrically connected to the gate of the internal power MOSFET. The device then behaves like a standard power MOSFET and can be used as a switch from DC to 50 KHz. The only difference from the user’s standpoint is that a small DC current (Iiss) flows into t

Applications

* Built-in thermal shut-down, linear BLOCK DIAGRAM current limitation and overvoltage clamp protect the chip in harsh enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. April 1996 1/11 VNP28N04 ABSOLUTE MAXIMUM RATING Symbol V DS V in ID IR V esd P to t Tj Tc
