VNQ860-E - Quad channel high-side driver

STMicroelectronics

The VNQ860-E by STMicroelectronics is a Quad channel high-side driver. Below is the official datasheet preview.

📥 Download Datasheet

VNQ860-E Quad channel high-side driver by STMicroelectronics - Datasheet Preview — Official preview page of the **VNQ860-E** Quad channel high-side driver datasheet (STMicroelectronics).

Datasheet Details

Part number	VNQ860-E
Manufacturer	STMicroelectronics
File Size	2.59 MB
Description	Quad channel high-side driver
Datasheet	VNQ860-E-STMicroelectronics.pdf

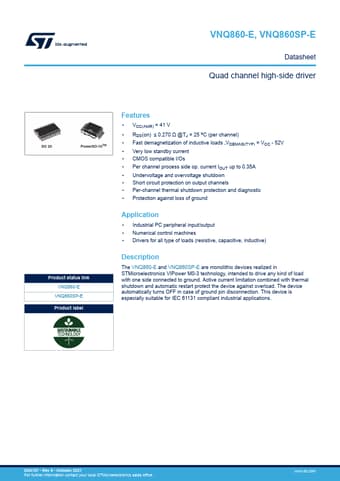

Additional preview pages of the VNQ860-E datasheet.

VNQ860-E Product details

Description

The VNQ860-E and VNQ860SP-E are monolithic devices realized in STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground.

Features

VCC(AMR) = 41 V.
RDS(on) ≤ 0.270 Ω @TJ = 25 oC (per channel).
Fast demagnetization of inductive loads ,VDEMAG(TYP) = VCC - 52V.
Very low standby current.
CMOS compatible I/Os.
Per channel process side op. current IOUT up to 0.35A.
Undervoltage and overvoltage shutdown.
Short circuit protection on output channels.
Per-channel thermal shutdown protection and diagnostic.
Protection against loss of ground Appl.
