SP986

High-Low Side Transformer Driver

SP986 Features

* 220nS Dead Time

* Soft Start

* OTP with Hysteresis

* 1A Driving Capability

* SOT23-6L and DFN3x3-6 Package PIN CONFIGURATION SOT23-6 DFN3x3-6 PART MARKING SOT-23-6L DFN3x3-6 2023/03/21 V.1.3 Page 1 SP986 High-Low Side Transformer Driver TYPICAL APPLICATION CIRCUIT PIN D

SP986 General Description

The SP986 is a dual channel, push-pull driver that is suited to drive transformers. The push and pull driver duties are balanced with a preset dead time of about 220ns. During the dead time, both drivers are in the pulling state with output at GND. Push and pull drivers have a peak current capabilit.

SP986 Datasheet (366.45 KB)

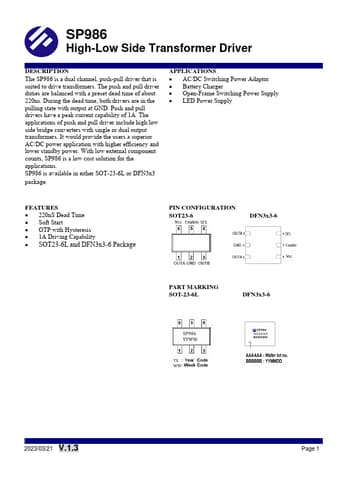

Preview of SP986 PDF

Datasheet Details

Part number:

SP986

Manufacturer:

SYNC POWER

File Size:

366.45 KB

Description:

High-low side transformer driver.
