SP9840 4-Quadrant Multiplying BiCMOS DAC

Sipex Corporation

Description

SP9840/43 8-Bit Octal, 4-Quadrant Multiplying, BiCMOS DAC s Replaces 8 Potentiometers and 8 Op amps s Operates from Single +5V Supply s 5 MHz 4-Quadra.
The SP9840 and SP9843 are general purpose octal DACs in a single package.

📥 Download Datasheet

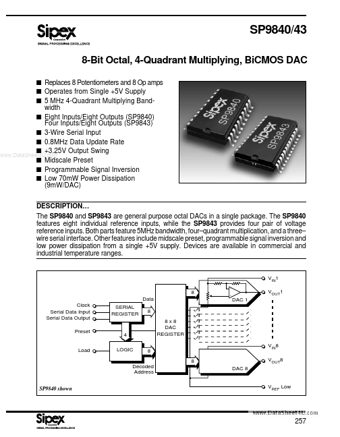

SP9840 Datasheet Preview — Preview of SP9840 PDF

Datasheet Specifications

Part number: SP9840
Manufacturer: Sipex Corporation
File Size: 164.94 KB
Datasheet: SP9840_SipexCorporation.pdf
Description: 4-Quadrant Multiplying BiCMOS DAC

Features

* eight individual reference inputs, while the SP9843 provides four pair of voltage reference inputs. Both parts feature 5MHz bandwidth, four
* quadrant multiplication, and a three
* wire serial interface. Other features include midscale preset, programmable signal inversion and low power
