SP9502 - Voltage Output D/A Converter

Datasheet Summary

Description

The SP9502 is a low power, dual version of the popular SP9345, Quad 12-Bit Digital-to-Analog Converter.

Features

  • ±4.5V output swings when using ±5 volt supplies. The converter is doublebuffered for easy microprocessor interface. Each 12-bit DAC is independently addressable and both DACS may be simultaneously updated using a single transfer command. The output settling-time is specified at 4µs. The SP9502 is available in 28.
  • pin SOIC and DIP packages, specified over commercial temperature range. Ref In 1 INPUT.

📥 Download Datasheet

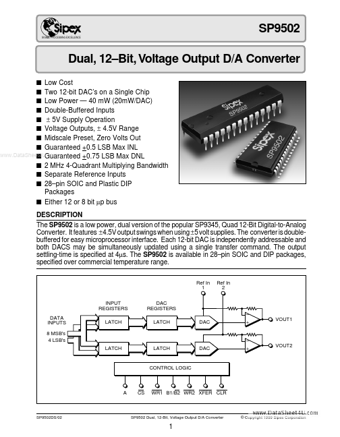

Datasheet preview – SP9502

Datasheet Details

Part number SP9502
Manufacturer Sipex Corporation
File Size 265.53 KB
Description Voltage Output D/A Converter
Datasheet download datasheet SP9502 Datasheet
Additional preview pages of the SP9502 datasheet.

📁 Similar Datasheet

  • SP9500 - 12-Bit / Voltage Output D/A Converter (Sipex)
  • SP9501 - 12-Bit / Voltage Output D/A Converter (Sipex)
  • SP9504 - Quad / 12-Bit / Voltage Output D/A Converter (Sipex)
  • SP959B - DECT RF Filters (SIPAT)
  • SP959B01-TD01 - Surface Acoustic Wave Filter (Sipat)
  • SP903 - DECT RF Filters (SIPAT)
  • SP915 - DECT RF Filters (SIPAT)
  • SP916 - Service Manual (ETC)
  • SP9210 - 128-RGB x 160 Color OLED Column / Row Driver (ETC)
  • SP927 - DECT RF Filters (SIPAT)
Other Datasheets by Sipex Corporation
  • SP9602 - Low Power Voltage Output D/A Converter
  • SP9840 - 4-Quadrant Multiplying BiCMOS DAC
  • SP9841 - BiCMOS DAC
  • SP9842 - BiCMOS DAC
  • SP9843 - 4-Quadrant Multiplying BiCMOS DAC

Full PDF Text Transcription

Click to expand full text
SP9502 SIGNAL PROCESSING EXCELLENCE Dual, 12–Bit, Voltage Output D/A Converter s Low Cost s Two 12-bit DAC’s on a Single Chip s Low Power — 40 mW (20mW/DAC) s Double-Buffered Inputs s ± 5V Supply Operation s Voltage Outputs, ± 4.5V Range s Midscale Preset, Zero Volts Out s Guaranteed +0.5 LSB Max INL www.DataSheet4U.com s Guaranteed +0.75 LSB Max DNL s 2 MHz 4-Quadrant Multiplying Bandwidth s Separate Reference Inputs s 28–pin SOIC and Plastic DIP Packages s Either 12 or 8 bit µp bus DESCRIPTION The SP9502 is a low power, dual version of the popular SP9345, Quad 12-Bit Digital-to-Analog Converter. It features ±4.5V output swings when using ±5 volt supplies. The converter is doublebuffered for easy microprocessor interface.
