SP9501 - 12-Bit / Voltage Output D/A Converter

Datasheet Summary

Description

The SP9501 is a low power 12-Bit Digital-to-Analog Converter.

Features

  • ±4.5V output swings when using ±5 volt supplies. The converter uses a standard 3.
  • wire serial interface compatible with SPI™, QSPI™ and Microwire™. The output settling-time is specified at 4µs. The SP9501 is available in 8.
  • pin 0.15" SOIC and DIP packages, specified over commercial and industrial temperature ranges. Ref In DAC.

📥 Download Datasheet

Datasheet preview – SP9501

Datasheet Details

Part number SP9501
Manufacturer Sipex
File Size 159.74 KB
Description 12-Bit / Voltage Output D/A Converter
Datasheet download datasheet SP9501 Datasheet
Additional preview pages of the SP9501 datasheet.

📁 Similar Datasheet

  • SP9502 - Voltage Output D/A Converter (Sipex Corporation)
  • SP959B - DECT RF Filters (SIPAT)
  • SP959B01-TD01 - Surface Acoustic Wave Filter (Sipat)
  • SP903 - DECT RF Filters (SIPAT)
  • SP915 - DECT RF Filters (SIPAT)
  • SP916 - Service Manual (ETC)
  • SP9210 - 128-RGB x 160 Color OLED Column / Row Driver (ETC)
  • SP927 - DECT RF Filters (SIPAT)
  • SP9270 - SP9270 (Si-Power)
  • SP92701 - Sub-Nanosecond ECL Line Receiver and Driver (Plessey Semiconductors)
Other Datasheets by Sipex
  • SP9500 - 12-Bit / Voltage Output D/A Converter
  • SP9504 - Quad / 12-Bit / Voltage Output D/A Converter
  • SP9316 - 16Bit CMOS Multiplying DAC
  • SP9600 - 12-Bit / Low Power Voltage Output D/A Converter
  • SP9601 - 12-Bit / Low Power Voltage Output D/A Converter
  • SP9604 - Quad / 12-Bit / Low Power Voltage Output D/A Converter

Full PDF Text Transcription

Click to expand full text

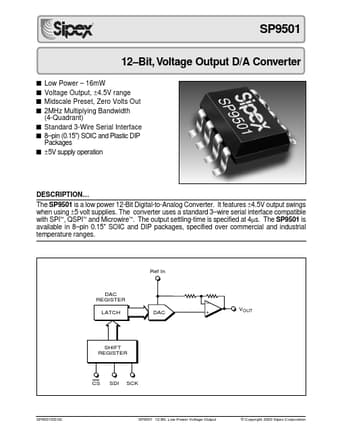

® SP9501 12–Bit, Voltage Output D/A Converter s s s s Low Power – 16mW Voltage Output, ±4.5V range Midscale Preset, Zero Volts Out 2MHz Multiplying Bandwidth (4-Quadrant) s Standard 3-Wire Serial Interface s 8–pin (0.15") SOIC and Plastic DIP Packages s ±5V supply operation DESCRIPTION… The SP9501 is a low power 12-Bit Digital-to-Analog Converter. It features ±4.5V output swings when using ±5 volt supplies. The converter uses a standard 3–wire serial interface compatible with SPI™, QSPI™ and Microwire™. The output settling-time is specified at 4µs. The SP9501 is available in 8–pin 0.15" SOIC and DIP packages, specified over commercial and industrial temperature ranges.
