SPN5001 Datasheet - SYNC POWER

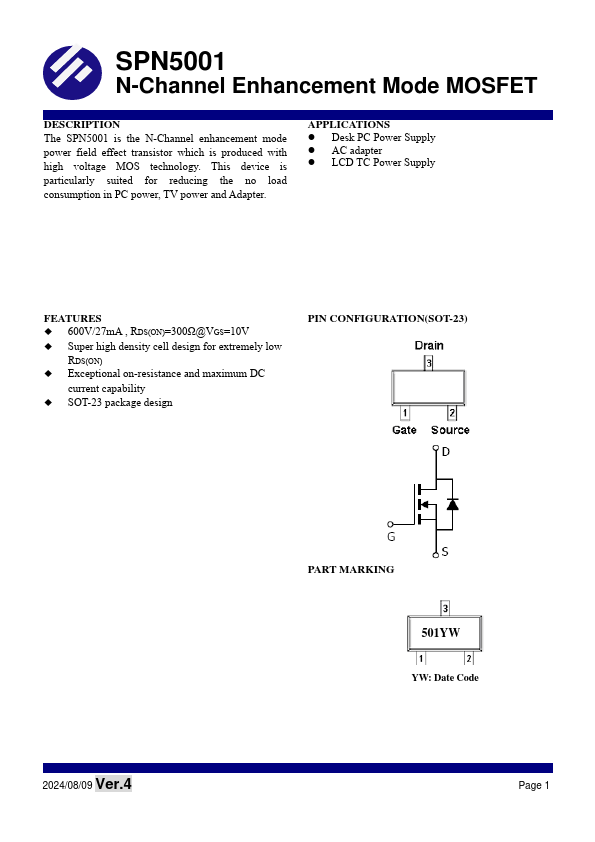

SPN5001 N-Channel Enhancement Mode MOSFET

The SPN5001 is the N-Channel enhancement mode power field effect transistor which is produced with high voltage MOS technology. This device is particularly suited for reducing the no load consumption in PC power, TV power and Adapter. APPLICATIONS * Desk PC Power Supply * AC adapter * L.

SPN5001 Features

* 600V/27mA , RDS(ON)=300Ω@VGS=10V

* Super high density cell design for extremely low RDS(ON)

* Exceptional on-resistance and maximum DC current capability

* SOT-23 package design PIN CONFIGURATION(SOT-23) 2024/08/09 Ver.4 PART MARKING 501YW YW: Date Code Page 1 SPN5001 N-Channel

SPN5001-SYNCPOWER.pdf
