SPN55T20

N-Channel Enhancement Mode MOSFET

SPN55T20 Features

* 200V/42A,RDS(ON)=32mΩ@VGS=10V

* Super high density cell design for extremely low RDS (ON)

* Exceptional on-resistance and maximum DC current capability

* TO-220-3L/TO-252-2L/PPAK5x6-8L package design PIN CONFIGURATION(PPAK5x6-8L) TO-220-3L TO-252-2L PPAK5x6-8L PART MARKING 202

SPN55T20 General Description

The SPN55T20 is the N-Channel enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application , notebook .

SPN55T20 Datasheet (388.13 KB)

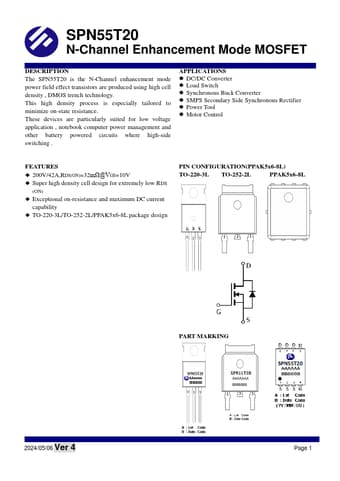

Preview of SPN55T20 PDF

Datasheet Details

Part number:

SPN55T20

Manufacturer:

SYNC POWER

File Size:

388.13 KB

Description:

N-channel enhancement mode mosfet.
