SPN5003

N-Channel MOSFET

SPN5003 Features

* 500V/10mA,RDS(ON)=250Ω@VGS=10V

* Reduce power consumption at no load for EPA/Climate Saver Application

* SOP-8 and DIP-8 package design 2023/05/31 Ver.6 PIN CONFIGURATION SOP-8 DIP-8 D1 D2 D3 Gnd S1 S2 G S3 PART MARKING SOP-8 DIP-8 SPN5003 AAAAAA BBBBBB SPN5003 AAAAAA BBBBBB

SPN5003 Datasheet (147.34 KB)

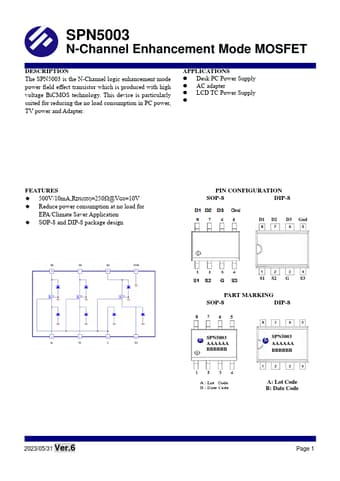

Preview of SPN5003 PDF

Datasheet Details

Part number:

SPN5003

Manufacturer:

SYNC POWER

File Size:

147.34 KB

Description:

N-channel mosfet.
