SPN6435 Dual N-Channel Enhancement Mode MOSFET

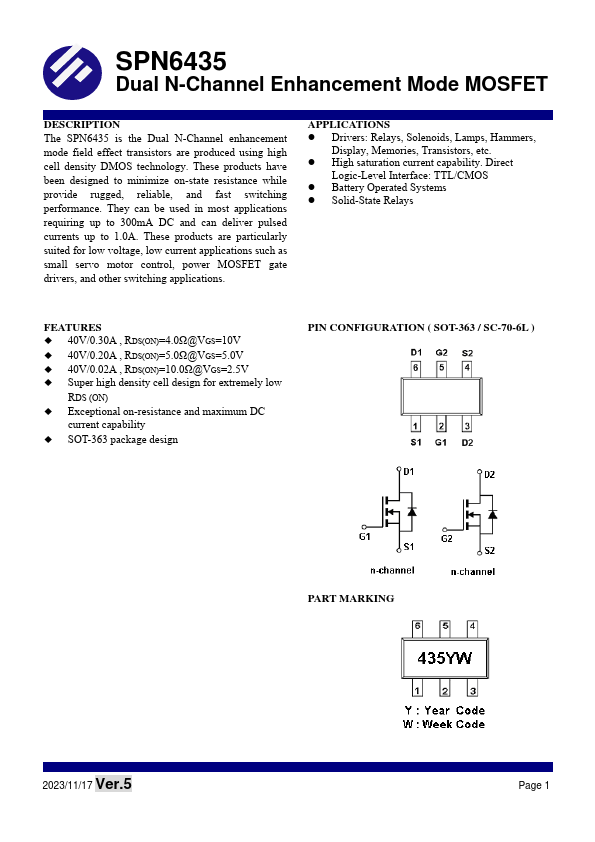

📥 Download Datasheet  Datasheet Preview Page 1

Description

SPN6435 Dual N-Channel Enhancement Mode MOSFET .
The SPN6435 is the Dual N-Channel enhancement mode field effect transistors are produced using high cell density DMOS technology.

📥 Download Datasheet

Preview of SPN6435 PDF

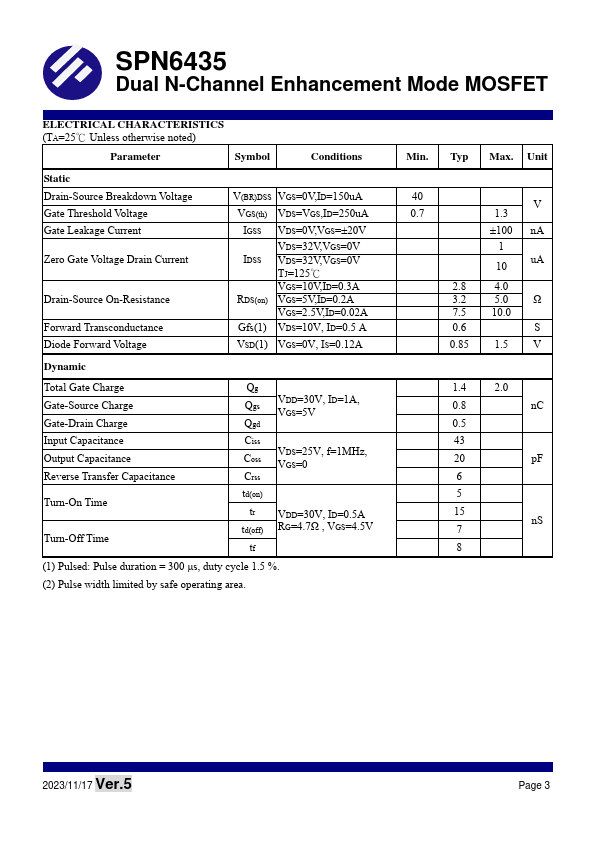

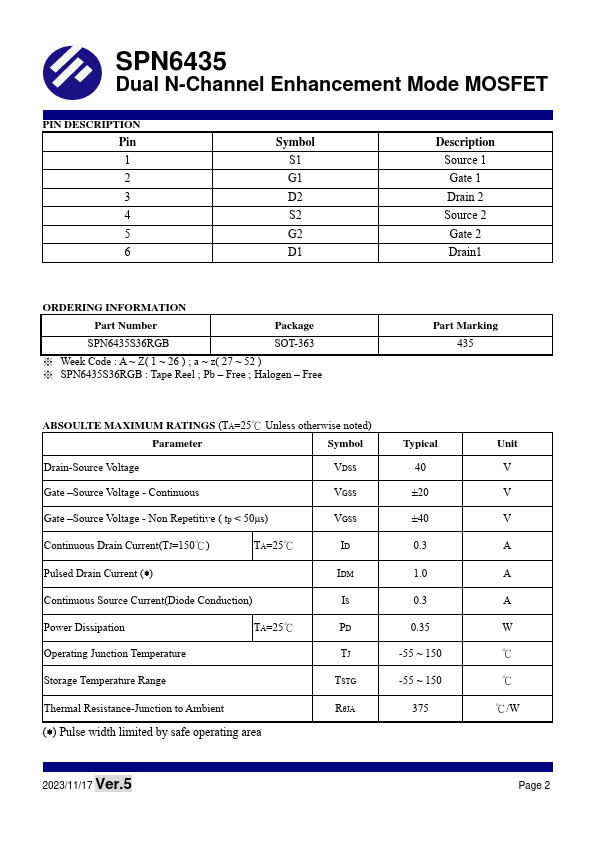

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SPN6435
Manufacturer
SYNC POWER
File Size
190.73 KB
Datasheet
SPN6435_SYNCPOWER.pdf
Description
Dual N-Channel Enhancement Mode MOSFET

Features

* 40V/0.30A , RDS(ON)=4.0Ω@VGS=10V
* 40V/0.20A , RDS(ON)=5.0Ω@VGS=5.0V
* 40V/0.02A , RDS(ON)=10.0Ω@VGS=2.5V
* Super high density cell design for extremely low RDS (ON)
* Exceptional on-resistance and maximum DC current capability
* SOT-363 package design PIN CONFIGURATION (

Applications

* requiring up to 300mA DC and can deliver pulsed currents up to 1.0A. These products are particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications. APPLICATIONS
* Drivers: Relays, Solenoids, Lamps,
