SPP1413 Datasheet - SYNC POWER

SPP1413_SYNCPOWER.pdf

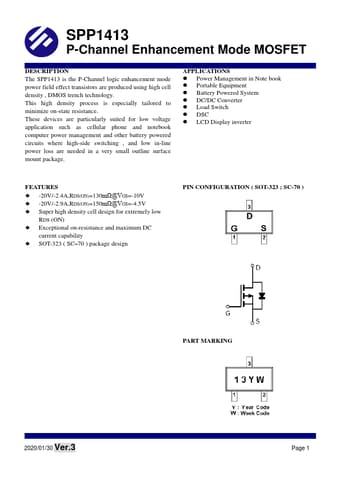

Preview of SPP1413 PDF
SPP1413 Datasheet Preview Page 2 SPP1413 Datasheet Preview Page 3

Datasheet Details

Part number:

SPP1413

Manufacturer:

SYNC POWER

File Size:

342.90 KB

Description:

P-channel mosfet.

SPP1413, P-Channel MOSFET

The SPP1413 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

These devices are particularly suited for low voltage application such a

SPP1413 Features

* -20V/-2.4A,RDS(ON)=130mΩ@VGS=-10V

* -20V/-2.9A,RDS(ON)=150mΩ@VGS=-4.5V

* Super high density cell design for extremely low RDS (ON)

* Exceptional on-resistance and maximum DC current capability

* SOT-323 ( SC

* 70 ) package design PIN CONFIGURATION ( SOT-323 ; SC-70 ) PA
