SPP2303 Datasheet - SYNC POWER

SPP2303 - P-Channel MOSFET

The SPP2303 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

These devices are particularly suited for low voltage application such a

SPP2303 Features

* -30V/-2.6A,RDS(ON)=130mΩ@VGS=-10V

* -30V/-2.0A,RDS(ON)=180mΩ@VGS=-4.5V

* Super high density cell design for extremely low RDS (ON)

* Exceptional on-resistance and maximum DC current capability

* SOT-23-3L package design PIN CONFIGURATION(SOT-23-3L) PART MARKING 2020/02/14 Ve

SPP2303_SYNCPOWER.pdf

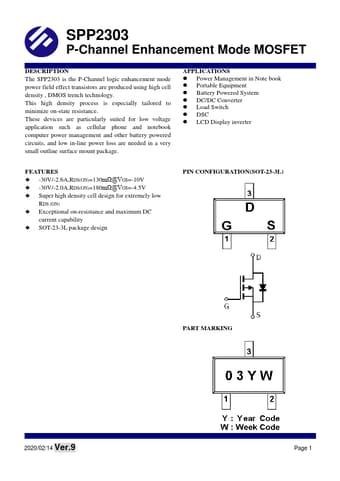

Preview of SPP2303 PDF
SPP2303 Datasheet Preview Page 2 SPP2303 Datasheet Preview Page 3

Datasheet Details

Part number:

SPP2303

Manufacturer:

SYNC POWER

File Size:

341.22 KB

Description:

P-channel mosfet.
