HK401 - High Voltage Hall Effect Switch Sensor

HK401 High Voltage Hall Effect Switch Sensor Introduction HK401, designed with Bipolar technology, includes on-chip Hall element voltage generator, a voltage regulator for operation with supply voltages of 3.8 to 60V, reverse voltage protection, temperature compensation circuitry, small-signal amplifier, Schmitt trigger and an open-collector output.

The sensor is designed to respond to North and South poles.

While the magnetic flux density(B) is larger than operate point Bop, the output will be

HK401 Features

* Miniature construction

* High sensitivity of +/-55 Gauss (typ.)

* Wide voltage range of 3.8 Vdc to 60 Vdc

* Temperature range of -40 °C to 150 °C

* Highest ESD performance up to ±4 kV

* Open Collector Output Applications

* BLDC Motor Commutation

* Flow sensor

HK401-SZWKW.pdf

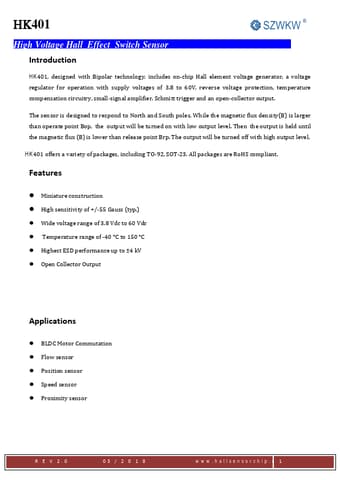

Preview of HK401 PDF
