HK422 High Sensitive Digital-Unipolar Hall Effect Sensor

HK422 High Sensitive Digital-Unipolar Hall Effect Sensor 1.Introduction HK422, unipolar Hall effect switch, designed with Bipolar technology, is south sensitive unipolar Hall Effective switch and includes on-chip Hall element voltage generator, a voltage regulator for operation with supply voltages of 3.5 to 40V, temperature compensation circuitry, small-signal amplifier, Schmitt trigger and an open-collector output. The sensor is designed to respond to South poles. While the magnetic flux den.

HK422 Features

* 3.Applications

* Miniature construction

* High sensitivity of 30/20Gauss (typ.)

* Wide voltage range of 3.5 Vdc to 40 Vdc

* Temperature range of -40 °C to125 °C

* Highest ESD performance up to ±4 kV

* Open Collector Output

* BLDC Motor Commutation

* Flow sensor

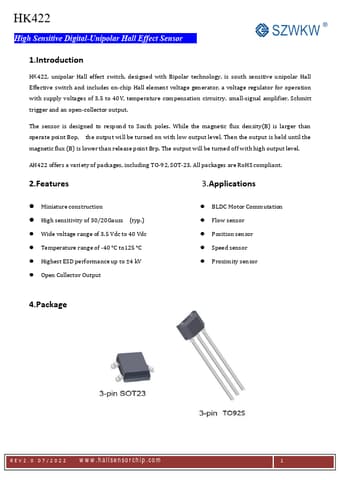

HK422 Datasheet (1.00 MB)
