S1700C-xxxx, S1703C Datasheet - SaRonix

S1700C-xxxx (S17xx-xxxx) Crystal Clock Oscillator

The S1700, S1703 and S1750 are crystalcontrolled, low-current oscillators providing precise rise and fall times to drive high speed CMOS and TTL loads. The sub-miniature, very low profile leadless ceramic package has gold-plated contact pads, ideal for today's pick-and-place SMT environments. The S1.

( DataSheet : www.DataSheet4U.com ) SaRonix Crystal Clock Oscillator Technical Data Frequency Range: Frequency Stability: 1.8432 MHz to 80 MHz ±50 or ±100 ppm over all conditions; calibration tolerance, operating temperature, input voltage change, load change, aging(1 year @ 25°C average ambient temperature), shock and vibration. 0 to +70°C -55 to +125°C 5.0V ±10% (S1700 & S1750) 3.3V ±10% (S1703) S1700: 15mA max 1.8432 to 35MHz 30mA max 35+ to 66MHz 50mA max 66+ to 80MHz S1750: 20mA max 1.8432.

S1700C-xxxx Features

* Sub-miniature, very low profile package is ideal for SMT applications

* CMOS, HCMOS & TTL compatible

* Perfect for PC's; notebook, palmtop computers; portable applications; PCMCIA cards; disc drives. Anywhere small size, low power, surface mountability are a priority.

S1703C_SaRonix.pdf

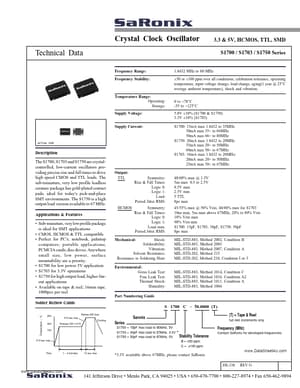

S1700C-xxxx Datasheet Preview — This datasheet PDF includes multiple part numbers: S1700C-xxxx, S1703C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S1700C-xxxx, S1703C

Manufacturer:

SaRonix

File Size:

165.60 KB

Description:

(s17xx-xxxx) crystal clock oscillator.

Note:

This datasheet PDF includes multiple part numbers: S1700C-xxxx, S1703C.
Please refer to the document for exact specifications by model.
