STM8401 Datasheet (SamHop Microelectronics) - Dual Enhancement Mode Field Effect Transistor

STM8401, Dual Enhancement Mode Field Effect Transistor

S T M8401 S amHop Microelectronics C orp.

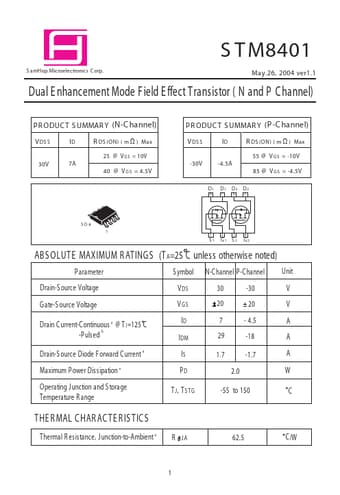

May.26, 2004 ver1.1 Dual E nhancement Mode Field E ffect Transistor ( N and P Channel) P R ODUC T S UMMAR Y (N-C hannel) V DS S 30V P R ODUC T S UMMAR Y (P -C hannel) V DS S -30V ID 7A R DS (ON) ( m W ) Max ID -4.5A R DS (ON) ( m W ) Max 25 @ V G S = 10V 40 @ V G S = 4.5V D1 8 55 @ V G S = -10V 85 @ V G S = -4.5V D1 7 D2 6 D2 5 S O-8 1 1 2 3 4 S1 G1 S 2 G2 ABS OLUTE MAXIMUM R ATINGS (T A=25 C unless otherwise noted) P arameter Drain-S o
