STM8457 Datasheet (SamHop) - Dual Enhancement Mode Field Effect Transistor

STM8457, Dual Enhancement Mode Field Effect Transistor

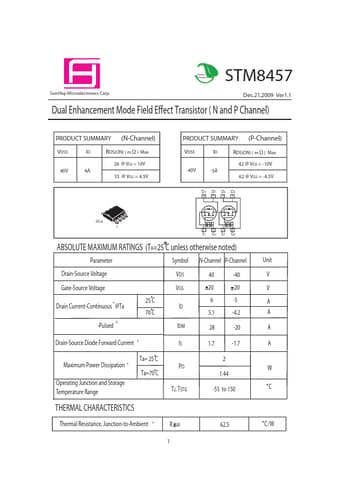

Green Product STM8457 Dec.21,2009 Ver1.1 SamHop Microelectronics Corp.

Dual Enhancement Mode Field Effect Transistor ( N and P Channel) PRODUCT SUMMARY VDSS 40V (N-Channel) Max PRODUCT SUMMARY VDSS -40V (P-Channel) Max ID 6A RDS(ON) ( m Ω ) ID -5A RDS(ON) ( m Ω ) 26 @ VGS = 10V 33 @ VGS = 4.5V D1 8 42 @ VGS = -10V 62 @ VGS = -4.5V D1 7 D2 6 D2 5 SO-8 1 1 2 3 4 S1 G1 S2 G2 ABSOLUTE MAXIMUM RATINGS (TA=25 C unless otherwise noted) Parameter Drain-Source Voltage Gate-Source Volt
