STM8405 Datasheet - SamHop Microelectronics

STM8405 Dual E nhancement Mode Field E ffect Transistor

S T M8405 S amHop Microelectronics C orp. Nov.23, 2004 ver 1.4 Dual E nhancement Mode Field E ffect Transistor ( N and P Channel) P R ODUC T S UMMAR Y (N-C hannel) V DS S 30V P R ODUC T S UMMAR Y (P -C hannel) V DS S -30V ID 7A R DS (ON) ( m W ) Max ID -5A R DS (ON) ( m W ) Max 25 @ V G S = 10V 40 @ V G S = 4.5V D1 8 45 @ V G S = -10V 60 @ V G S = -4.5V D1 7 D2 6 D2 5 S O-8 1 1 2 3 4 S1 G1 S 2 G2 ABS OLUTE MAXIMUM R ATINGS (T A=25 C unless otherwise noted) P arameter Drain-S ou.

STM8405 Datasheet (1.05 MB)

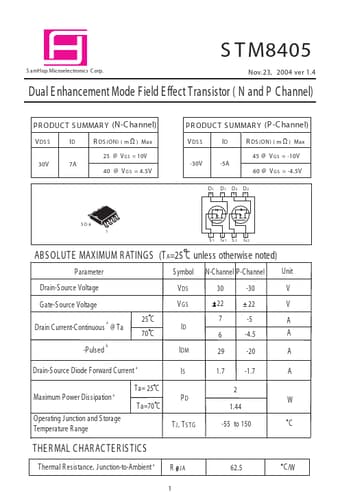

Preview of STM8405 PDF

Datasheet Details

Part number:

STM8405

Manufacturer:

SamHop Microelectronics

File Size:

1.05 MB

Description:

Dual e nhancement mode field e ffect transistor.
