SC8273

The SC8273 is Dual N-Channel Enhancement Mode Field Effect Transistor designed by SamHop.

Product Overview

SamHop

📥 Download Datasheet

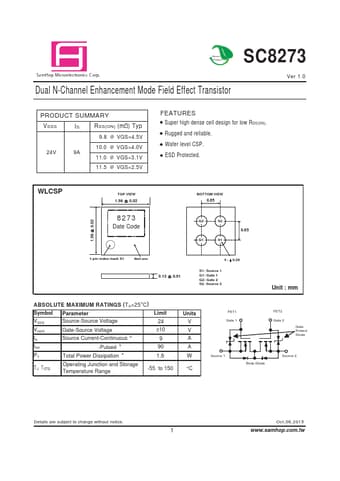

SC8273 Dual N-Channel Enhancement Mode Field Effect Transistor by SamHop - Datasheet Preview — Datasheet preview – SC8273

Datasheet Details

Part number	SC8273
Manufacturer	SamHop
File Size	94.83 KB
Description	Dual N-Channel Enhancement Mode Field Effect Transistor
Datasheet	SC8273-SamHop.pdf
Additional preview pages of the SC8273 datasheet.

Product details

Features

Super high dense cell design for low RDS(ON). Rugged and reliable. Wafer level CSP. ESD Protected. WLCSP TOP VIEW 1.98 0.02 8273 Date Code 1.98 0.02 BOTTOM VIEW 0.65 G2 S2 G1 S1 0.65 1-pin index mark S1 Mark area 0.13 0.01 4 - φ 0.28 S1: Source 1 G1: Gate 1 G2: Gate 2 S2: Source 2 Unit : mm.
