STS8235 Datasheet - SamHop

STS8235 Dual N-Channel Enhancement Mode Field Effect Transistor

STS8235 S a mHop Microelectronics C orp. Ver 1.0 Dual N-Channel Enhancement Mode Field Effect Transistor PRODUCT SUMMARY V DSS 30V F E AT UR E S S uper high dense cell design for low R DS (ON ). ID 4.5A R DS(ON) (m Ω) Max 36 @ VGS=4.5V 46 @ VGS=2.5V R ugged and reliable. S urface Mount P ackage. E S D P rotected. S OT26 Top View D1 D2 S1 D1/D2 S2 1 2 3 6 5 4 G1 D1/D2 G2 G1 G2 S1 S2 ABSOLUTE MAXIMUM RATINGS ( T A=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM PD TJ, TSTG P.

STS8235-SamHop.pdf

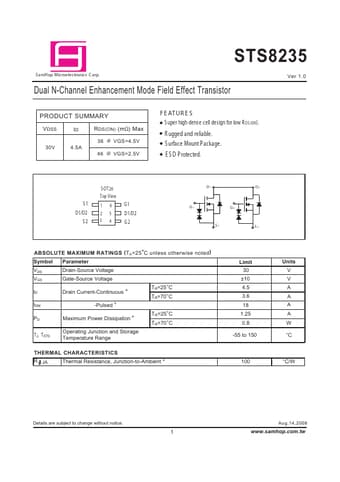

Preview of STS8235 PDF
STS8235 Datasheet Preview Page 2 STS8235 Datasheet Preview Page 3

Datasheet Details

Part number:

STS8235

Manufacturer:

SamHop

File Size:

167.16 KB

Description:

Dual n-channel enhancement mode field effect transistor.
