STS8050 - NPN Silicon Transistor

📥 Download Datasheet

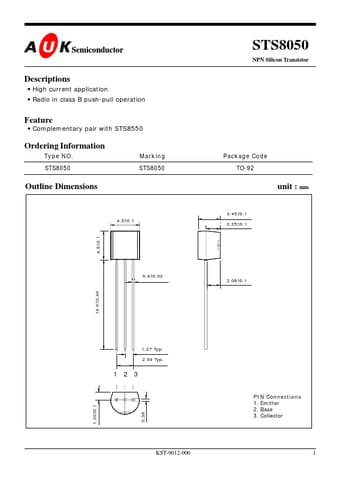

Preview of STS8050 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number STS8050
Manufacturer AUK
File Size 115.93 KB
Description NPN Silicon Transistor
Datasheet download datasheet STS8050_AUK.pdf

STS8050 Product details

Description

High current application Radio in class B push-pull operation Feature Complementary pair with STS8550 Ordering Information Type NO.STS8050 Marking STS8050 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ.2.54 Typ.1 2 3 1.20±0.1 0.38 PIN Connections 1. Emitter 2. Base 3. Collector KST-9012-000 1 STS8050 Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emi
