STS1980 Datasheet PDF (PNP Silicon Transistor)

STS1980 - PNP Silicon Transistor

Description

General small signal amplifier

Features

Low collector saturation voltage : VCE(sat)=-0.3V(Max. ).
Low output capacitance : Cob=4pF(Typ. ).
Complementary pair with STS5343 Ordering Information Type NO. STS1980 Marking STS1980 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 http://www. DataSheet4U. net/ 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 0.38 PIN Connections 1. Emitter 2. Base 3. Collector KST-9052-001 1 datasheet pdf - http://www. Da.

Datasheet Details

Part number	STS1980
Manufacturer	AUK
File Size	284.63 KB
Description	PNP Silicon Transistor
Datasheet	STS1980 Datasheet
Additional preview pages of the STS1980 datasheet.

📁 Similar Datasheet

STS100 - Multifunction Telecommunications Switch (Solid State Optronic)

STS10100S - TRENCH SCHOTTKY BARRIER DIODE (JILIN SINO)

STS10DN3LH5 - Power MOSFETs (ST Microelectronics)

STS10NF30L - N-CHANNEL PowerMESH MOSFET (ST Microelectronics)

STS10P3LLH6 - P-channel Power MOSFET (STMicroelectronics)

STS10P4LLF6 - P-Channel Power MOSFET (STMicroelectronics)

STS10PF30L - P-CHANNEL POWER MOSFET (STMicroelectronics)

STS10T06 - Low Vf Schottky Diode (STANSON)

STS11NF30L - N-CHANNEL PowerMESH MOSFET (ST Microelectronics)

STS11NF3LL - N-CHANNEL PowerMESH MOSFET (ST Microelectronics)

Full PDF Text Transcription

Click to expand full text

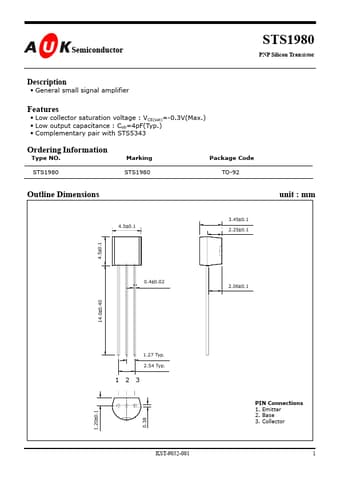

Semiconductor STS1980 PNP Silicon Transistor Description • General small signal amplifier Features • Low collector saturation voltage : VCE(sat)=-0.3V(Max.) • Low output capacitance : Cob=4pF(Typ.) • Complementary pair with STS5343 Ordering Information Type NO. STS1980 Marking STS1980 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 http://www.DataSheet4U.net/ 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ. 2.54 Typ. 1 2 3 1.20±0.1 0.38 PIN Connections 1. Emitter 2. Base 3. Collector KST-9052-001 1 datasheet pdf - http://www.DataSheet4U.
