STS1980N - PNP Silicon Transistor

Description

STS1980N PNP Silicon Transistor General small signal amplifier

Features

  • Low collector saturation voltage : VCE(sat)=-0.3V(Max. ).
  • Low output capacitance : Cob=4pF(Typ. ).

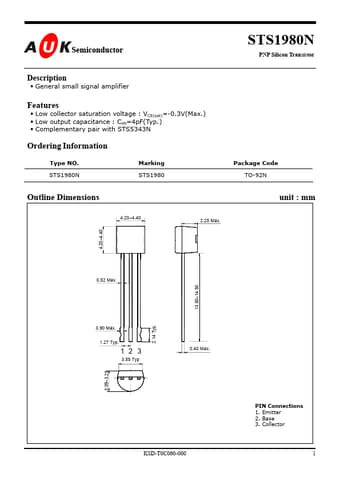

  • Complementary pair with STS5343N Ordering Information Type NO. STS1980N Marking STS1980 Package Code TO-92N Outline Dimensions 4.20~4.40 4.20~4.40 unit : mm 2.25 Max. http://www. DataSheet4U. net/ 0.52 Max. 13.50~14.50 0.90 Max. 1.27 Typ. 2.14 Typ. 1 2 3 3.55 Typ 3.09~3.29 0.40 Max. PIN Connections 1. Emitter 2. Base 3. Collector KSD-T0C060-000 1 datasheet pdf -.
