STS8550 - PNP Silicon Transistor

📥 Download Datasheet

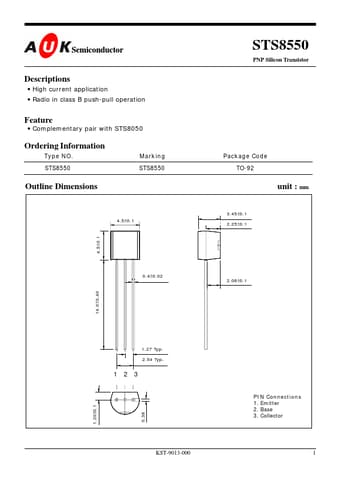

Preview of STS8550 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number STS8550
Manufacturer AUK
File Size 124.65 KB
Description PNP Silicon Transistor
Datasheet download datasheet STS8550_AUK.pdf

STS8550 Product details

Description

High current application Radio in class B push-pull operation Feature Complementary pair with STS8050 Ordering Information Type NO.STS8550 Marking STS8550 Package Code TO-92 Outline Dimensions 3.45±0.1 4.5±0.1 2.25±0.1 unit : mm 4.5±0.1 0.4±0.02 2.06±0.1 14.0±0.40 1.27 Typ.2.54 Typ.1 2 3 1.20±0.1 0.38 PIN Connections 1. Emitter 2. Base 3. Collector KST-9013-000 1 STS8550 Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emi
