SA9105E, THREE PHASE UNIDIRECTIONAL POWER/ENERGY METERING IC WITH INSTANTANEOUS PULSE OUTPUT

SA9105E THREE PHASE UNIDIRECTIONAL POWER/ENERGY METERING IC WITH INSTANTANEOUS PULSE OUTPUT .
The SAMES SA9105E Three Phase unidirectional Power/Energy metering integrated circuit generates a pulse rate output, the frequency of which is proport.

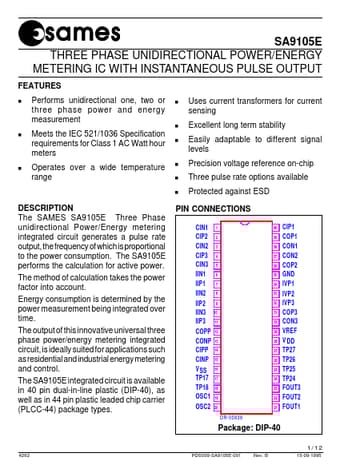

datasheet Preview Page 1 from Datasheet4u.com

SA9105E_Sames.pdf

SA9105E Datasheet Preview — Preview of SA9105E PDF

Datasheet Details

Part number:

SA9105E

Manufacturer:

Sames

File Size:

123.95 KB

Description:

THREE PHASE UNIDIRECTIONAL POWER/ENERGY METERING IC WITH INSTANTANEOUS PULSE OUTPUT

Features

* n sames Performs unidirectional one, two or three phase power and energy measurement Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters Operates over a wide temperature range n Uses current transformers for current sensing Excellent long term stability Easily adapt

Applications

* such as residential and industrial energy metering and control. The SA9105E integrated circuit is available in 40 pin dual-in-line plastic (DIP-40), as well as in 44 pin plastic leaded chip carrier (PLCC-44) package types. PIN CONNECTIONS CIN1 CIP2 CIN2 CIP3 CIN3 IIN1 IIP1 IIN2 IIP2 IIN3 IIP3 COPP
