SA9105F

THREE PHASE BIDIRECTIONAL POWER/ENERGY METERING IC WITH INSTANTANEOUS PULSE OUTPUT

SA9105F Features

* n sames Performs bidirectional one, two or three phase power and energy measurement Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters Operates over a wide temperature range Uses current transformers for current sensing n n Excellent long term stability Easily adap

SA9105F General Description

The SAMES SA9105F Three Phase bidirectional Power/Energy metering integrated circuit generates pulse rate outputs for positive and negative energy directions, the frequency of which is proportional to the power consumption. The SA9105F performs the calculation for active power. The method of calcula.

SA9105F Datasheet (114.29 KB)

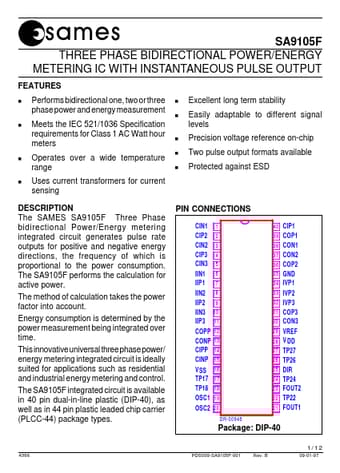

Preview of SA9105F PDF

Datasheet Details

Part number:

SA9105F

Manufacturer:

Sames

File Size:

114.29 KB

Description:

Three phase bidirectional power/energy metering ic with instantaneous pulse output.
