SA9602E

SINGLE PHASE UNIDIRECTIONAL POWER/ENERGY METERING IC WITH INSTANTANEOUS PULSE OUTPUT

SA9602E Features

* n Pin and functionally compatible with the SA9102E with reduced external components n Performs unidirectional power and energy measurement n Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters n Protected against ESD n sames n n n n Total power consumption rating be

SA9602E General Description

The SAMES SA9602E is an enhancement of the SA9102E, as no external capacitors are required for the A/D converters. The SAMES SA9602E Single Phase unidirectional Power/Energy metering integrated circuit generates a pulse rate output, 1 IIN the frequency of which is proportional to the power consumpti.

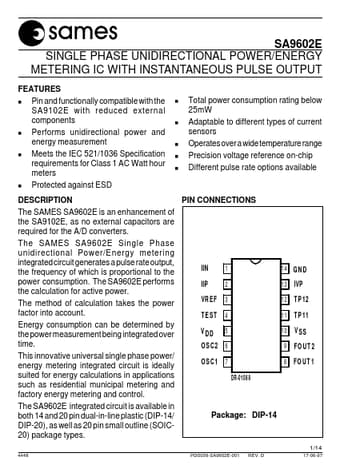

SA9602E Datasheet (126.52 KB)

Preview of SA9602E PDF

Datasheet Details

Part number:

SA9602E

Manufacturer:

Sames

File Size:

126.52 KB

Description:

Single phase unidirectional power/energy metering ic with instantaneous pulse output.
