SA9602J SINGLE PHASE BIDIRECTIONAL POWER/ENERGY METERING

The SAMES SA9602F is an enhancement of the SA9102F, as no external capacitors are required for the A/D converters. The SA9602J is an enhancement of the SA9102H. The SAMES SA9602F and SA9602J Single Phase bidirectional Power/Energy metering integrated circuits generate a pulse rate output, the freque.

SA9602J Features

* s Performs bidirectional power and s Total power consumption rating below energy measurement 25mW s Meets the IEC 521/1036 Specification s Adaptable to different types of current requirements for Class 1 AC Watt hour sensors meters s Operates over a wide temperature range s Protected agains

SA9602F_Sames.pdf

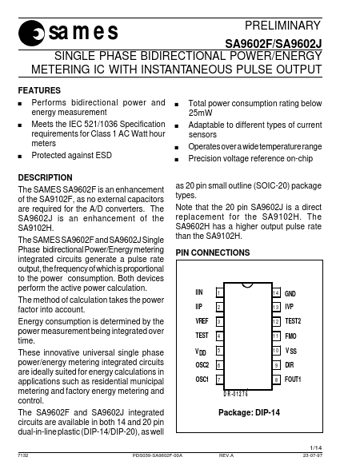

SA9602J Datasheet Preview — This datasheet PDF includes multiple part numbers: SA9602J, SA9602F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SA9602J, SA9602F

Manufacturer:

Sames

File Size:

72.44 KB

Description:

Single phase bidirectional power/energy metering.

Note:

This datasheet PDF includes multiple part numbers: SA9602J, SA9602F.
Please refer to the document for exact specifications by model.
