SA9602F

SINGLE PHASE BIDIRECTIONAL POWER/ENERGY METERING IC

SA9602F Features

* s Performs bidirectional power and energy measurement s Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters s Protected against ESD DESCRIPTION The SAMES SA9602F is an enhancement of the SA9102F, as no external capacitors are required for the A/D converters. The SA9602J

SA9602F General Description

The SAMES SA9602F is an enhancement of the SA9102F, as no external capacitors are required for the A/D converters. The SA9602J is an enhancement of the SA9102H. The SAMES SA9602F and SA9602J Single Phase bidirectional Power/Energy metering integrated circuits generate a pulse rate output, the freque.

SA9602F Datasheet (72.44 KB)

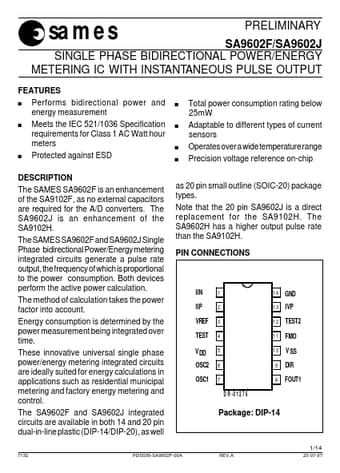

Preview of SA9602F PDF

Datasheet Details

Part number:

SA9602F

Manufacturer:

Sames

File Size:

72.44 KB

Description:

Single phase bidirectional power/energy metering ic.
