KMM53616004BK

DRAM MODULE

KMM53616004BK Features

* Part Identification - KMM53616004BK(4K cycles/64ms Ref, SOJ, Solder) - KMM53616004BKG(4K cycles/64ms Ref, SOJ, Gold)

* Hyper Page Mode Operation

* CAS-before-RAS & Hidden Refresh capability

* RAS-only refresh capability

* TTL compatible inputs and outputs

KMM53616004BK General Description

The Samsung KMM53616004B is a 16Mx36bits Dynamic RAM high density memory module. The Samsung KMM53616004B consists of eight CMOS 16Mx4bits DRAMs and four CMOS 16Mx1bit DRAMs in SOJ packages mounted on a 72-pin glass-epoxy substrate. A 0.1 or 0.22uF decoupling capacitor is mounted on the printed circ.

KMM53616004BK Datasheet (404.56 KB)

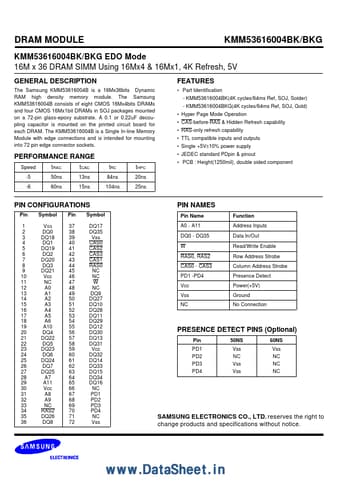

Preview of KMM53616004BK PDF

Datasheet Details

Part number:

KMM53616004BK

Manufacturer:

Samsung Semiconductor

File Size:

404.56 KB

Description:

Dram module.
