K9K8G08U0A (K9xxG08UxA) 1G x 8 Bit / 2G x 8 Bit / 4G x 8 Bit NAND Flash Memory

Offered in 1G x 8bit, the K9K8G08U0A is a 8G-bit NAND Flash Memory with spare 256M-bit. Its NAND cell provides the most costeffective solution for the solid state application market. A program operation can be performed in typical 200µs on the (2K+64)Byte page and an erase operation can be performed.

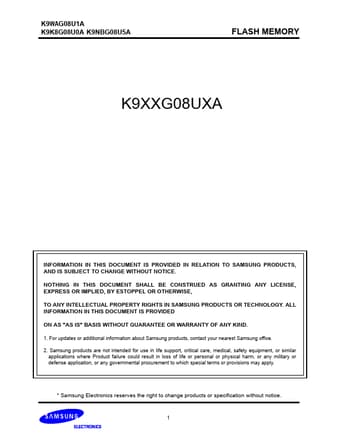

www.DataSheet4U.com K9WAG08U1A K9K8G08U0A K9NBG08U5A FLASH MEMORY K9XXG08UXA INFORMATION IN THIS DOCUMENT IS PROVIDED IN RELATION TO SAMSUNG PRODUCTS, AND IS SUBJECT TO CHANGE WITHOUT NOTICE. NOTHING IN THIS DOCUMENT SHALL BE CONSTRUED AS GRANTING ANY LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IN SAMSUNG PRODUCTS OR TECHNOLOGY. ALL INFORMATION IN THIS DOCUMENT IS PROVIDED ON AS "AS IS" BASIS WITHOUT GUARANTEE OR WARRANTY OF ANY KIND. 1. For upd.

K9K8G08U0A Features

* Voltage Supply - 2.70V ~ 3.60V

* Organization - Memory Cell Array : (1G + 32M) x 8bit - Data Register : (2K + 64) x 8bit

* Automatic Program and Erase - Page Program : (2K + 64)Byte - Block Erase : (128K + 4K)Byte

* Page Read Operation - Page Size : (2K + 64)Byte -
