K9K8G08U0M, K9K8G08U1M, 1G x 8 Bit / 2G x 8 Bit NAND Flash Memory

www.DataSheet4U.com K9K8G08U1M K9F4G08U0M Advance FLASH MEMORY Document Title 512M x 8 Bits / 1G x 8 Bits NAND Flash Memory Revision History Revisi.
Offered in 512Mx8bit, the K9F4G08U0M is a 4G-bit NAND Flash Memory with spare 128M-bit.

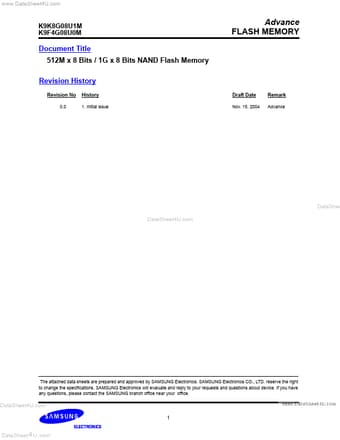

datasheet Preview Page 1 from Datasheet4u.com

K9K8G08U1M_Samsung.pdf

K9K8G08U0M Datasheet Preview — This datasheet PDF includes multiple part numbers: K9K8G08U0M, K9K8G08U1M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

K9K8G08U0M, K9K8G08U1M

Manufacturer:

Samsung semiconductor

File Size:

1.43 MB

Description:

1G x 8 Bit / 2G x 8 Bit NAND Flash Memory

Note:

This datasheet PDF includes multiple part numbers: K9K8G08U0M, K9K8G08U1M.
Please refer to the document for exact specifications by model.

Features

* Voltage Supply - 2.70V ~ 3.60V
* Organization - Memory Cell Array : (512M + 16,384K)bit x 8bit - Data Register : (2K + 64)bit x 8bit
* Automatic Program and Erase - Page Program : (2K + 64)Byte - Block Erase : (128K + 4K)Byte
* Page Read Operation - Page Size : (2K

Applications

* such as solid state file storage and other portable applications requiring non-volatility. DataSheet4U. com 2 DataSheet 4 U . com www. DataSheet4U. com K9K8G08U1M K9F4G08U0M PIN CONFIGURATION (TSOP1) K9F4G08U0M-YCB0,PCB0/YIB0,PIB0 N. C N. C N. C N. C N. C N. C R/B RE CE N. C N. C Vcc Vss N. C N. C CLE ALE WE
