S1A0426C01 - AM/FM 1 CHIP RADIO

Samsung semiconductor

The S1A0426C01 by Samsung semiconductor is a AM/FM 1 CHIP RADIO. Below is the official datasheet preview.

📥 Download Datasheet

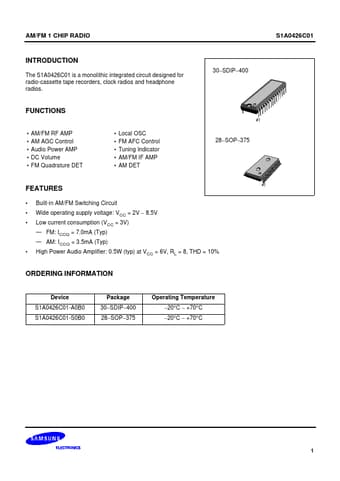

S1A0426C01 AM/FM 1 CHIP RADIO by Samsung semiconductor - Datasheet Preview — Official preview page of the S1A0426C01 AM/FM 1 CHIP RADIO datasheet (Samsung semiconductor).

Datasheet Details

Part number	S1A0426C01
Manufacturer	Samsung semiconductor
File Size	70.64 KB
Description	AM/FM 1 CHIP RADIO
Datasheet	S1A0426C01_Samsungsemiconductor.pdf
Additional preview pages of the S1A0426C01 datasheet.

S1A0426C01 Product details

Features

Built-in AM/FM Switching Circuit Wide operating supply voltage: VCC = 2V.
8.5V Low current consumption (VCC = 3V).
FM: ICCQ = 7.0mA (Typ).
AM: ICCQ = 3.5mA (Typ).
High Power Audio Amplifier: 0.5W (typ) at VCC = 6V, RL = 8, THD = 10%.
