S1A0426C02 AM/FM 1 CHIP RADIO

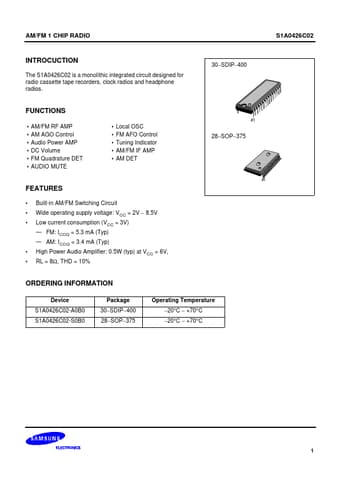

AM/FM 1 CHIP RADIO S1A0426C02 INTROCUCTION The S1A0426C02 is a monolithic integrated circuit designed for radio cassette tape recorders, clock radios and headphone radios. 30 SDIP 400 FUNCTIONS AM/FM RF AMP AM AGO Control Audio Power AMP DC Volume FM Quadrature DET AUDIO MUTE Local OSC FM AFO Control Tuning Indicator AM/FM IF AMP AM DET 28 SOP 375 FE.

S1A0426C02 Features

* Built-in AM/FM Switching Circuit Wide operating supply voltage: VCC = 2V

* 8.5V Low current consumption (VCC = 3V)

* FM: ICCQ = 5.3 mA (Typ)

* AM: ICCQ = 3.4 mA (Typ)

* High Power Audio Amplifier: 0.5W (typ) at VCC = 6V, RL = 8Ω
