S1M8822

INTERGER RF/IF DUAL PLL

S1M8822 Datasheet (464.18 KB)

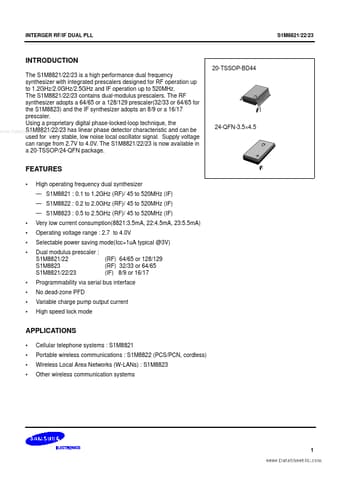

Preview of S1M8822 PDF Datasheet

Datasheet Details

Part number:

S1M8822

Manufacturer:

Samsung semiconductor

File Size:

464.18 KB

Description:

Interger rf/if dual pll

S1M8822 Features

* High operating frequency dual synthesizer

* S1M8821 : 0.1 to 1.2GHz (RF)/ 45 to 520MHz (IF)

* S1M8822 : 0.2 to 2.0GHz (RF)/ 45 to 520MHz (IF)

* S1M8823 : 0.5 to 2.5GHz (RF)/ 45 to 520MHz (IF)

* Very low current consumption(8821:

S1M8822 General Description

Pin No (20TSSOP) 1 Pin No (24QFN) 24 Symbol VDD1 I/O Description Power supply voltage input for the RF PLL part. VDD1 must equal VDD2. In order to reject supply noise, bypass capacitors must be placed as close as possible to this pin and be connected directly to the ground plane. No connection. Powe.
