S1M8823 Datasheet, Pll, Samsung semiconductor

S1M8823 Features

• Pll
• High operating frequency dual synthesizer
    – S1M8821 : 0.1 to 1.2GHz (RF)/ 45 to 520MHz (IF)
    – S1M8822 : 0.2 to 2.0GHz (RF)/ 45 to 520MHz (IF) <

PDF File Details

Part number:

S1M8823

Manufacturer:

Samsung semiconductor

File Size:

464.18kb

Download:

📄 Datasheet

Description:

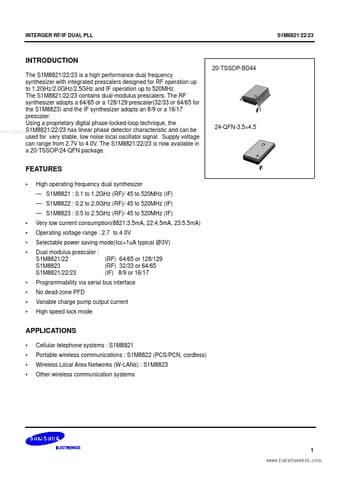

Interger rf/if dual pll. Pin No (20TSSOP) 1 Pin No (24QFN) 24 Symbol VDD1 I/O Description Power supply voltage input for the RF PLL part. VDD1 must equal VDD2

S1M8823 Application

• Applications
• Cellular telephone systems : S1M8821 Portable wireless communications : S1M8822 (PCS/PCN, cordl
