S1M8831A Datasheet - Samsung semiconductor

S1M8831A - FRACTIONAL-N RF/INTEGER-N IF DUAL PLL

Pin No.

1 2 3 4 www.DataSheet4U.com 5 Symbol VDDRF VPRF CPoRF DGND f inRF f inRF I/O * * O * I I Description RF PLL power supply(2.7V to 4.0V).

Must be equal to VDDIF.

Power supply for RF charge pump.

Must be ≥ VDDRF and VDDIF.

RF charge pump output.

Connected to an extern

FRACTIONAL-N RF/INTEGER-N IF DUAL PLL S1M8831A/33 INTRODUCTION The S1M8831A/33 is a Fractional-N frequency synthesizer with integrated prescalers, designed for RF operation up to 1.2GHz/K-PCS and for IF operation up to 520MHz.

The fractional-N synthesizer allows fast-locking, low phase noise phase-locked loops to be built easily, thus having rapid channel switching and reducing standby time for extended battery life.

The S1M8831A/33 based on ∑ - ∆ fractional-N techniques solves the fractional

S1M8831A Features

* High operating frequency dual synthesizer

* S1M8831A: 0.71 to 1.2GHz(RF)/ 45 to 520MHz(IF)

* S1M8833: 1.6 to 1.65GHz(RF)/ 45 to 520MHz(IF)

* Operating voltage range: 2.7 to 4.0V Low current consumption (S1M8831A: 5.0mA, S1M8833: 7.0mA)

S1M8831A_Samsungsemiconductor.pdf

Preview of S1M8831A PDF

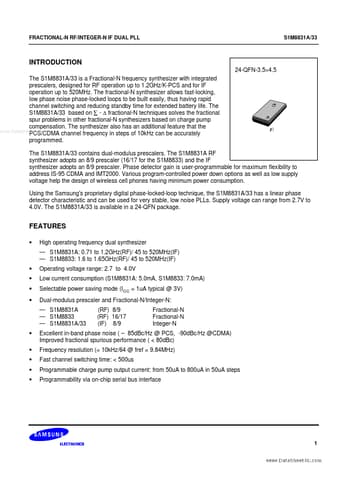

S1M8831A Datasheet Preview Page 2 S1M8831A Datasheet Preview Page 3

Datasheet Details

Part number:

S1M8831A

Manufacturer:

Samsung semiconductor

File Size:

223.96 KB

Description:

Fractional-n rf/integer-n if dual pll.
