S3C4510B 16/32-bit RISC microcontroller

Table 1-1. S3C4510B Signal Descriptions Signal XCLK Pin No. 80 Type I Description S3C4510B system clock source. If CLKSEL is Low, PLL output clock is used as the S3C4510B internal system clock. If CLKSEL is High, XCLK is used as the S3C4510B internal system clock. System clock out. MCLKO is monitor.

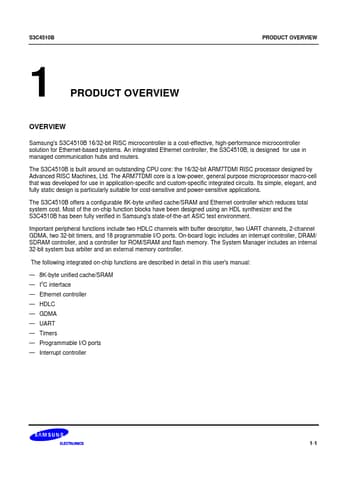

S3C4510B PRODUCT OVERVIEW 1 OVERVIEW PRODUCT OVERVIEW Samsung's S3C4510B 16/32-bit RISC microcontroller is a cost-effective, high-performance microcontroller solution for Ethernet-based systems. An integrated Ethernet controller, the S3C4510B, is designed for use in managed communication hubs and routers. The S3C4510B is built around an outstanding CPU core: the 16/32-bit ARM7TDMI RISC processor designed by Advanced RISC Machines, Ltd. The ARM7TDMI core is a low-power, general purpose microp.

S3C4510B Features

* Architecture

* Integrated system for embedded ethernet applications Fully 16/32-bit RISC architecture Little/Big-Endian mode supported basically, the internal architecture is big-endian. So, the little-endian mode only support for external memory. Efficient and powerful A
