S3C4530A Datasheet - Samsung semiconductor

S3C4530A - 16/32-bit RISC microcontroller is a cost-effective/ high-performance microcontroller

Table 1-1.

S3C4530A Signal Descriptions Signal XCLK Pin No.

80 Type I Description S3C4530A System Clock source.

If CLKSEL is Low, PLL output clock is used as the S3C4530A internal system clock.

If CLKSEL is High, XCLK is used as the S3C4530A internal system clock.

System Clock Out.

MCLKO is monitor

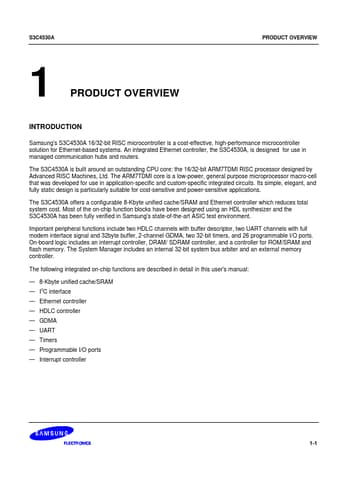

S3C4530A PRODUCT OVERVIEW 1 PRODUCT OVERVIEW INTRODUCTION Samsung's S3C4530A 16/32-bit RISC microcontroller is a cost-effective, high-performance microcontroller solution for Ethernet-based systems.

An integrated Ethernet controller, the S3C4530A, is designed for use in managed communication hubs and routers.

The S3C4530A is built around an outstanding CPU core: the 16/32-bit ARM7TDMI RISC processor designed by Advanced RISC Machines, Ltd.

The ARM7TDMI core is a low-power, general purpose mi

S3C4530A Features

* Architecture

* Integrated system for embedded ethernet applications Fully 16/32-bit RISC architecture Little/Big-Endian mode supported basically, the internal architecture is big-endian. So, the little-endian mode only support for external memory. Efficient and powerful A
