S3P80E7 Datasheet - Samsung semiconductor

S3C8-SERIES MICROCONTROLLERS

S3P80E7 Features

* include:

* Efficient register-oriented architecture

* Selectable CPU clock sources

* Idle and Stop power-down mode release by interrupt

* Built-in basic timer with watchdog function A sophisticated interrupt structure recognizes up to eight interrupt levels. Each leve

S3P80E7 General Description

Pin Names P0.0 *P0.7 Pin Type I/O Pin Description I/O port with bit-programmable pins. Configurable to input or push-pull output mode. Pull-up resistors are assignable by software. Pins can be assigned individually as external interrupt inputs with noise filters, interrupt enable/disable, an.

S3P80E7 Datasheet (246.74 KB)

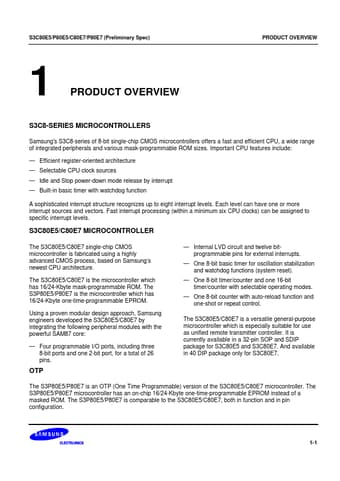

S3P80E7 Datasheet Preview — Preview of S3P80E7 PDF

Datasheet Details

Part number:

S3P80E7

Manufacturer:

Samsung semiconductor

File Size:

246.74 KB

Description:

S3c8-series microcontrollers.
S3C80E5/P80E5/C80E7/P80E7 (Preliminary Spec) PRODUCT OVERVIEW 1 PRODUCT OVERVIEW S3C8-SERIES MICROCONTROLLERS Samsung's S3C8-series of 8-bit singl.
