S3P80F9 S3C8-SERIES MICROCONTROLLERS

of 44-QFP and 42-SDIP Pin Names P0.0 *P0.7 Pin Type I/O Pin Description I/O port with bit-programmable pins. Configurable to input or push-pull output mode. Pull-up resistors can be assigned by software. Pins can be assigned individually as external interrupt inputs with noise filters, inter.

S3P80F9 Features

* include:

* Efficient register-oriented architecture

* Selectable CPU clock sources

* Idle and Stop power-down mode release by interrupt

* Built-in basic timer with watchdog function A sophisticated interrupt structure recognizes up to eight interrupt levels. Each leve

S3P80F7_Samsungsemiconductor.pdf

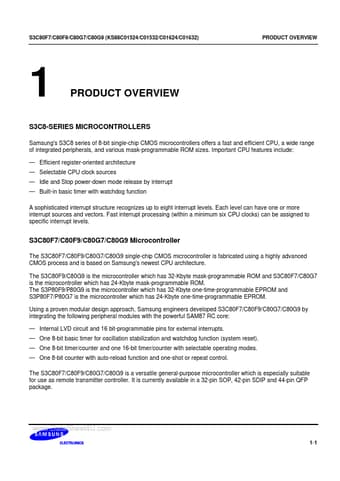

S3P80F9 Datasheet Preview — This datasheet PDF includes multiple part numbers: S3P80F9, S3P80F7. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S3P80F9, S3P80F7

Manufacturer:

Samsung semiconductor

File Size:

232.38 KB

Description:

S3c8-series microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: S3P80F9, S3P80F7.
Please refer to the document for exact specifications by model.
